Custom Wheel Accessories does it's best to provide as much information as possible to help with the applications of Wheel Adapters. It is, however, the user's responsibility to verify all information for their vehicles.
Hub Studs CANNOT protrude outside the face of the adapter. This will prevent the wheel from sitting FLUSH to the face of the adapter.
The installer assumes all responsibility to ensure the spacers are installed properly using the appropriate hardware.
The spacers are shipped with matching open end lugs on the studs, these would be used to bolt the spacer to the vehicle if the thread size is correct for the vehicle. Only approved lug nuts can be used to bolt the Spacer to the vehicle, factory lug nuts cannot be used.
There are many Dual Drill Options Available. Scroll down to the bottom of the page or Click on "SHOP BY" Dual Drill Adapters to the left of the screen.
5 x 127mm (5.0") Vehicle
-
-
-
-
5500-5450B3
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 4.5" (114.3mm)
B = 1.25" Thickness
1/2"-20 Studs -

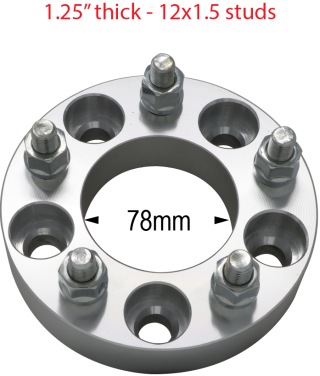

5500-5450B6
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 4.5" (114.3mm)
B = 1.25" Thickness
12mm 1.50 studs -
5500-5450B8
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 4.5" (114.3mm)
B = 1.25" Thickness
14mm 1.50 studs -
5500-5450C3
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 4.5" (114.3mm)
C = 1.5" Thickness
1/2"-20 Studs -
5500-5450C8
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 4.5" (114.3mm)
C = 1.5" Thickness
14mm 1.50 studs -
5500-5475B
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 4.75" (120.7mm)
B = 1.25" Thickness -
5500-5500B3
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
B = 1.25" Thickness
1/2"-20 Studs
Learn More
Also Available in 1.5" & 2" Thickness -
5500-5500B3-WCJ
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
B = 1.25" Thickness
1/2"-20 Studs
Hub and Wheel Centric Jeep Application
Also Available in 1.5" & 2" Thickness
Learn More
**14mm x 1.5" Thread Also Available** -
5500-5500B6
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
B = 1.25" Thickness
12mm 1.50 studs
Learn More
Also Available in 1.5" & 2" Thickness -
5500-5500B8-WCJ
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
B = 1.25" Thickness
14mm 1.50 studs
Hub and Wheel Centric Jeep Application
Also Available in 1.5" & 2" Thickness
Learn More
**1/2"-20"Thread Also Available** -
5500-5500C3
Vehicle: 5 x 5" (127mm)Wheel: 5 x 5" (127mm)
C = 1.5" Thickness
1/2"-20 Studs
Also Available in 1.25" & 2" Thickness Learn More -
5500-5500C3-WCJ
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
C = 1.5" Thickness
1/2"-20 Studs
Hub and Wheel Centric Jeep Application
Also Available in 1.25" & 2" Thickness
Learn More
**14mm x 1.5" Thread Also Available** -
5500-5500C6
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
C = 1.50" Thickness
12mm 1.50 Studs
Learn More
Also Available in 1.25" & 2" Thickness -
5500-5500C8
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
C = 1.5" Thickness
14mm 1.50 studs
Learn More
Also Available in 2" Thickness -
5500-5500C8-WCJ
Vehicle: 5 x 5" (127mm)Wheel: 5 x 5" (127mm)
1.5" Thick
14mm 1.50 studs
Hub and Wheel Centric Jeep Application
Also Available in 1.25" & 2" Thickness
Learn More
**1/2"-20"Thread Also Available** -
5500-5500E3
Vehicle: 5 x 5" (127mm)Wheel: 5 x 5" (127mm)
E = 2" Thickness
1/2"-20 studs
Also Available in 1.25" & 1.5" Thickness Learn More -
5500-5500E3-WCJ
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
E = 2" Thickness
1/2"-20 Studs
Hub and Wheel Centric Jeep Application
Also Available in 1.25" & 1.5" Thickness
Learn More
**14mm x 1.5" Thread Also Available** -
5500-5500E6
Vehicle: 5 x 5" (127mm)Wheel: 5 x 5" (127mm)
E = 2" Thickness
12mm 1.50 Studs
Also Available in 1.25" & 1.5" Thickness Learn More -

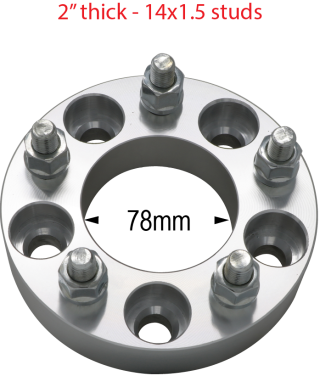

5500-5500E8
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
E = 2" Thickness
14mm 1.50 studs
**Available In Hub and Wheel Centric for Chevy** Learn More -
5500-5500E8-WCC
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
E = 2" Thickness
14mm 1.5 Studs
Hub and Wheel Centric Chevy Application -
5500-5500E8-WCJ
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
E = 2" Thickness
14mm 1.50 studs
Hub and Wheel Centric Jeep Application
Also Available in 1.25" & 1.5" Thickness
**1/2-20 Thread Also Available** -
5500-6135E2
Vehicle: 5 x 5" (127mm)Wheel: 6 x 135mm
2" Thickness Only
14mm 2.00 Studs
2 PC Adapter Attached with Allen Bolts Learn More -
5500-6135E6
Vehicle: 5 x 5" (127mm)Wheel: 6 x 135mm
2" Thickness Only
12mm 1.50 studs
2 PC Adapter Attached with Allen Bolts Learn More -
5500-6135E8
Vehicle: 5 x 5" (127mm)Wheel: 6 x 135mm
2" Thickness Only
14mm 1.50 studs
2 PC Adapter Attached with Allen Bolts Learn More -
5500-6550E6
Vehicle: 5 x 5" (127mm)Wheel: 6 x 5.5" (139.7mm)
2" Thickness Only
12mm 1.50 studs
2 PC Adapter Attached with Allen Bolts Learn More -
5500-6550E8
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 6 x 5.5" (139.7mm)
2" Thickness Only
14mm 1.50 Studs
2 PC Adapter Attached with Allen Bolts -
5135/5500-5135C
Learn More
Vehicle: 5 x 135mm or 5 x 5" (127mm)
Wheel: 5 x 135mm
C = 1.5" Thickness
Dual Drill Adapter -
5135/5500-5450C
Vehicle: 5 x 135mm or 5 x 5" (127mm)
Wheel: 5 x 4.5" (114.3mm)
C = 1.5" ThicknessDual Drill Adapter
Learn More -
5135/5500-5475C
Vehicle: 5 x 135mm and 5 x 5" (127mm)
Wheel: 5 x 4.75" (120.65mm)
C = 1.5" ThicknessDual Drill Adapter
Learn More -
5135/5500-5500C
Vehicle: 5 x 135mm or 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
C = 1.50" ThicknessDual Drill Adapter
Learn More -
5135/5500-5550C
Vehicle: 5 x 135mm or 5 x 5" (127mm)
Wheel: 5 x 5.5" (139.7mm)
C = 1.5" ThicknessDual Drill Adapter
Learn More -
5500/5550-5135C
Dual Drill AdapterVehicle: 5 x 5" (127mm) or 5 x 5.5" (139.7mm)Wheel: 5 x 135mm
C = 1.50" Thickness
1/2"-20 studs Learn More -
5500/5550-5150C
Learn More
Dual Drill Adapter
Vehicle: 5 x 5" (127mm) or 5 x 5.5" (139.7mm)
Wheel: 5 x 150mm
C = 1.50" Thickness
14mm 1.50 studs -
5500/5550-5450C
Dual Drill Adapter
Vehicle: 5 x 5" (127mm) or 5 x 5.5" (139.7mm)Wheel: 5 x 4.50" (114.3mm)
C = 1.50" Thickness
1/2"-20 studs Learn More -
5500/5550-5475C
Learn More
Dual Drill Adapter
Vehicle: 5 x 5" (127mm) or 5 x 5.5" (139.7mm)
Wheel: 5 x 4.75" (120.65mm)
C = 1.50" Thickness
1/2"-20 studs -
5500/5550-5500C
Learn More
Dual Drill Adapter
Vehicle: 5 x 5" (127mm) or 5 x 5.5" (139.7mm)
Wheel: 5 x 5" (127mm)
C = 1.50" Thickness
1/2"-20 studs -
5500/5550-5550C
Learn More
Dual Drill Adapter
Vehicle: 5 x 5" (127mm) or 5 x 5.5" (139.7mm)
Wheel: 5 x 5.5" (139.7mm)
C = 1.50" Thickness
1/2"-20 studs -

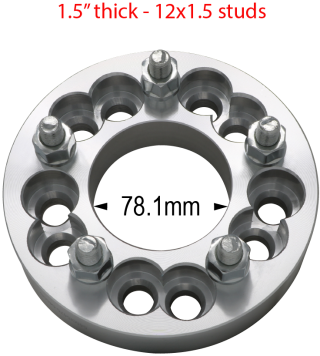

5 x 4.75" and 5 x 5" to 5 x 5" - 1.5" thick - 78.1 Hub
Learn More
Vehicle: 5 x 4.75" (120.65mm) and 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
78.1mm Hub Bore -
5500-5500C8-WCC
Learn More
Vehicle: 5 x 5" (127mm)
Wheel: 5 x 5" (127mm)
C = 1.5" Thickness
14mm 1.5 Studs
Hub and Wheel Centric Chevy Application
