Custom Wheel Accessories does it's best to provide as much information as possible to help with the applications of Wheel Adapters. It is, however, the user's responsibility to verify all information for their vehicles.

Hub Studs CANNOT protrude outside the face of the adapter. This will prevent the wheel from sitting FLUSH to the face of the adapter.

The installer assumes all responsibility to ensure the spacers are installed properly using the appropriate hardware.

The spacers are shipped with matching open end lugs on the studs, these would be used to bolt the spacer to the vehicle if the thread size is correct for the vehicle. Only approved lug nuts can be used to bolt the Spacer to the vehicle, factory lug nuts cannot be used.

8 x 6.5" (165.1mm) Vehicle

Desc

26 Items

per page
View as Grid List
  1. 8650-8170C8 - 14mm 1.5 / 1.5" Thick / 126mm CB
    8650-8170C8 - 14mm 1.5 / 1.5" Thick / 126mm CB


    Vehicle: 8 x 6.5" (165.1mm)
    Wheel: 8 x 170mm
    C = 1.50" Thickness
    14mm 1.5 Studs

    Learn More
  2. 8650-8170C9 - 9/16" / 1.5" Thick / 121.3mm CB
    8650-8170C9 - 9/16" / 1.5" Thick / 121.3mm CB


    Vehicle: 8 x 6.5" (165.1mm)
    Wheel: 8 x 170mm
    C = 1.50" Thickness
    9/16" Studs

    Learn More
  3. 8650-8170E - 14mm 1.5 / 2" Thick / 126mm CB
    8650-8170E - 14mm 1.5 / 2" Thick / 126mm CB


    Vehicle: 8 x 6.5" (165.1mm)
    Wheel: 8 x 170mm
    E = 2" Thickness
    14mm 1.5 Studs

    Learn More
  4. 8650-8170E-WCCF - 14mm 1.5 / 2" Thick / 116.7mm CB / 124.75mm WB
    8650-8170E-WCCF - 14mm 1.5 / 2" Thick / 116.7mm CB / 124.75mm WB


    Vehicle: 8 x 6.5" (165.1mm)

    Wheel: 8 x 170mm
    C = 1.50" Thickness
    14mm 1.5 Studs

    Hub and Wheel Center Chevy Vehicle to Ford Wheel Application

    Learn More
  5. 8650-8180C - 14mm 1.5 / 1.5" Thick / 126mm CB
    8650-8180C - 14mm 1.5 / 1.5" Thick / 126mm CB


    Vehicle: 8 x 6.5" (165.1mm)
    Wheel: 8 x 180mm
    C = 1.5" Thickness

    Learn More
  6. 8650-8180E - 14mm 1.5 / 2" Thick / 126mm CB
    8650-8180E - 14mm 1.5 / 2" Thick / 126mm CB


    Vehicle: 8 x 6.5" (165.1mm)
    Wheel: 8 x 180mm
    E = 2" Thickness

    Learn More

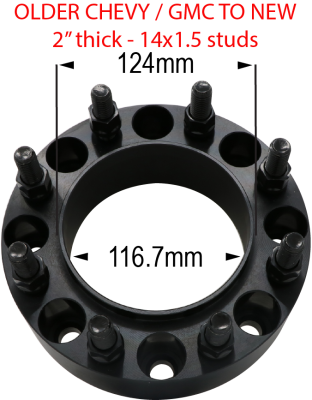

  7. 8650-8180E-WCCC - 14mm 1.5 / 2" Thick / 116.7mm CB / 124mm WB
    8650-8180E-WCCC - 14mm 1.5 / 2" Thick / 116.7mm CB / 124mm WB


    Vehicle: 8 x 6.5 (165mm)

    Wheel: 8 x 180mm
    E = 2" Thickness
    14mm 1.5 Studs


    Hub and Wheel Centric Application for Chevy Vehicle to New Chevy Wheel

    Learn More
  8. 8650-8200E - 14mm 1.50 / 2" Thick / 126.15mm CB
    8650-8200E - 14mm 1.50 / 2" Thick / 126.15mm CB


    Vehicle: 8 x 6.5" (165.1mm)

    Wheel: 8 x 200mm
    E = 2" Thickness

    Learn More
  9. 8650-8210E - 14mm 1.5 / 2" Thick / 126mm CB
    8650-8210E - 14mm 1.5 / 2" Thick / 126mm CB


    Vehicle: 8 x 6.5" (165.1mm)
    Wheel: 8 x 210mm
    E = 2" Thickness

    Learn More
